Fastwel Robust BoxPCs designed to work in harsh environments, easy to be installed and maintained.

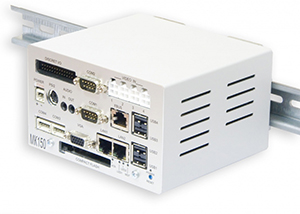

MK150 – Box PC
The computer is based on MicroPC AMD GEODE LX 800, 500 MHz – CPC150 processor module. Four video input channels, direct connection of Fastwel I/O input/output modules; Nonvolatile memory 128 KB; Power voltage 18 – 36V; MK150 has no moving parts; Operating temperature range: -40 to +70ºС; Mounting on a DIN-rail or panel

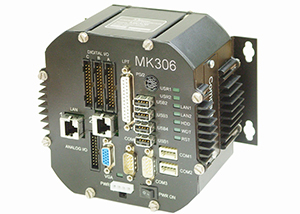

MK-306 – Box PC
The computer is based on CPC306 processor module, VIM301 graphics controller and PS351 power supply module.CPC306 does not use forced cooling and does not have moving parts. One of the features of MK306 is availability of analog and discrete input/output channels realized on CPC306 processor module.
MK306 has mounting platform for mounting on a horizontal surface and rear bracket for mounting on vertical surfaces.

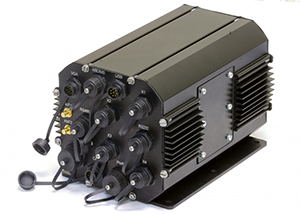

MK-307 – РС/104, РС/104+ SBC based Modular computer
Fastwel MK307 is a platform for modular computer designed to serve industrial, transport, governmental and other applications where environment is severe. Due to the modular design, Fastwel MK307 offers flexibility in its configuration to achieve optimum price/performance ratio for every particular usage.
Up to five PC/104-Plus electronic modules can be placed inside the rugged aluminum alloy housing. All connectors are located on the front panel providing easy access and allowing installation into blind compartments.

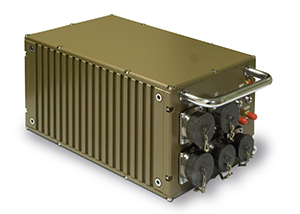

MK308 – PC platform for modules in PC/104+ form-factor
МК308 is a basic PC platform for modules in PC/104+ form-factor. The Box PC enables conductive heat transfer to the enclosure and makes it possible to install additional extension modules.
The Box PC has the following operating temperature range: –40°C to +70°C.
MK308 – Rugged Box PC from Fastwel is fully configurable and can be customized according to the specific demands of your application.

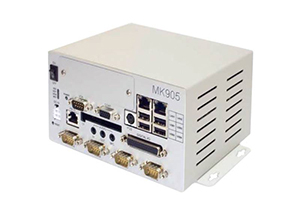

MK905 – AMD GEODE LX 800 (500 MHz) based BOX PC
MK905 Box PC is designed on the basis of CPB905 Module and PS351 Power Supply Module.
The PC does not use the forced cooling and contains no moving parts. The structure makes it possible to install two PC/104+ extension modules.
MK300 – PC platform for modules in Stack PC form-factor
Basic PC platform for stack modules in StackPC and PC/104 form-factors with conduction heat removal to the enclosure.
Possibility of heat removal to the enclosure from any module. The enclosure enables to install up to seven expansion modules. As the Box PC platform, MK300 could be equipped with different types of expansion modules provided by Fastwel and other manufacturers.
