The MicroPC DIO modules are designed to connect discrete isolated inputs/outputs to the system.

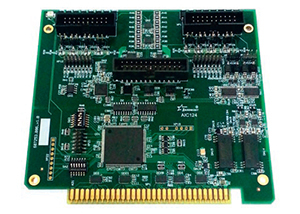

AIC124 – Analog I/O Module
AIC124 Analog I/O Module in MicroPC format is designed for conversion of 16x analogsignals of DC voltage or direct current into additional 14x bit code, as well as forgeneration of output analog signals of DC voltage and direct current.

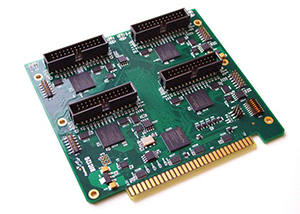

DIC120 – Programmable I/O Module
The module is implemented in MicroPC standard and is designed for input/output of 96 or 48 signals with CMOS logical levels, TTL or extension of system resources (e.g. support of additional system timers or acceleration of logical and arithmetic operations). The module can also be sued for measurement of frequency (duration) and signal phases, performing calculation and timing operations, generation of PWM-signals, conversion of codes, generation of control timing diagram and event hardware interrupts at inputs. DIC120 is compatible with DIC110 module in terms of hardware and software.

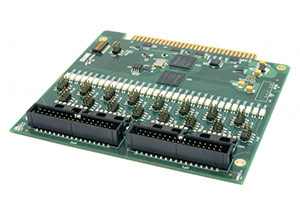

DIC122 – Digital Input Card with Galvanic Isolation
The card is implemented in MicroPC standard, is equipped with 32-x channels and is designed for reading the states of digital signals or measuring frequency signals with voltage levels from 3.2 to 52 V. The device uses the field-programmable gate array (FPGA), which makes it possible to change processing algorithm of inputs (or diagram) without changing the topology. Channels can use a single-wire/twowire connection (with common ground).

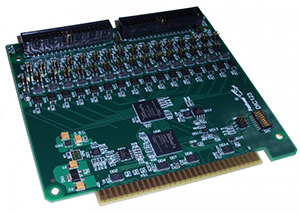

DIC123 – Digital Input Card with Galvanic Isolation
The Module is implemented in MicroPC standard and is designed for switching of 32-x DC voltage up to 60V at the load current up to 500 mA. All the channels are isolated from the system and from each other. By switching on the power supply and after the RESET hardware signal, all the outputs are in the off state. The module can read the state of outputs (up to optical isolation). The module has 32 channels for output of digital signals with the channel-by-channel galvanic isolation.

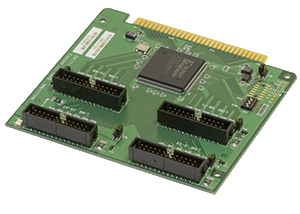

DIC111 (UNIO96-1) – Multipurpose I/O Card
The module is a 96-channel digital I/O card in MicroPC format. UNIO96-1 accepts TTL-logic level signals.
The main application area of the module – to serve as an interface with opto-module racks MPB-24/TBI-24/TBI-16L (Opto-22, Grayhill) or with isolated I/O terminal boards TBI-xx/xx. Besides, the module can be used to control displays, LED-devices, for frequency measurements, for timing diagrams generation, for code conversion etc.
