MicroPC power supply modules are for use in unmanned systems operating in hard to reach areas in extreme environments.

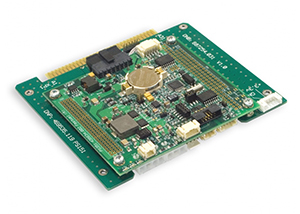

PS151 – Power Supply Module in MicroPC format
PS151 power supply module is implemented in MicroPC format in is optimized for the use as a part of the devices, intended for operation in:
- non-maintained systems in hard to get areas;
- systems self-powered from natural energy sources;
- battery supplied systems installed in vehicles;
- systems, operated under extreme climatic conditions.
The intelligent power supply control system fulfills the following functions:
- Control of watchdog timer, which switches off system power supply in case of system hanging;
- Monitoring of ambient temperature and control of heater and fan channels within the programmed temperature ranges, from – 50С;
- Maintaining of a system event log with a reference to time and date;
- Automatic transition to a redundant power supply channel;
- Switching on/switching off the system according to schedule;
- “Protection” function of the switched-off system.
Features:
- MicroPC form-factor
- Input voltage: 10.5 – 36 V
- Protection against surge overvoltages at input of the primary power supply
- Consumption current in switched_on condition: 5 mA
- Galvanic isolation at input/output: 1000 V
- Protection against overloads and overheating
- Operating temperature range of voltage converters: from –40°С to +85°С
- Operating temperature range of control system: from –50°С to +85°С
- Vibration / Single shocks / Multiple shocks resistance: 5g / 100g / 50g
