Crane Aerospace & Electronics offers Interpoint® DC-DC converter and EMI filter modules which sustain business by providing reliable power for aerospace, industrial controls, pipeline equipment or other critical needs in demanding environments.
The most popular Interpoint Industrial DC-DC converters are:

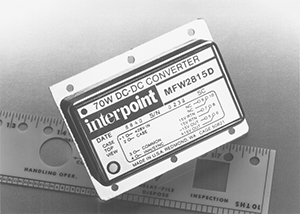

The MFW Series DC/DC converters offer up to 70 watts of power from dual or triple outputs. Unscreened models are guaranteed to pass a gross leak test (maximum leak rate of 0.001 atm-cc/sec). Environmentally screened units (designated by the /ES suffix) are hermetically solder sealed.
HR700 Series DC/DC converters offer up to 70 watts of power from dual or triple outputs. The converters combine the small size and high reliability of hybrid-based components, the high efficiency of switching regulators, and the isolation, regulation, and low noise characteristics of linear regulators.

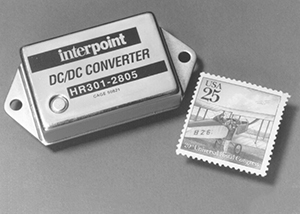

The HR300 Series DC/DC converters provide 30 watts of output power. They combine the small size and high reliability of hybrid-based components, the high efficiency of switching regulators, and the isolation, regulation, and low noise characteristics of linear regulators.

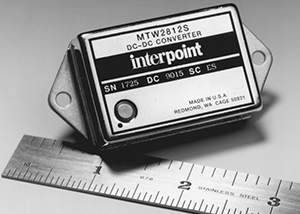

The MTW Series DC/DC converters provide 30 watts of output power. They have the high efficiency and wide input voltage range of switching regulators with the isolation, output regulation, and low output noise typical of linear regulators without requiring external components. Available with standard or /ES screening.

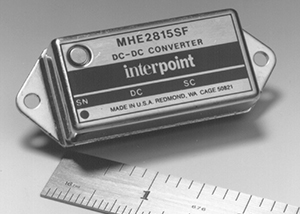

The MHE Series DC/DC converters provide 20 watts of output power. They offer the high efficiencies associated with switching regulators, yet have full isolation and the excellent regulation typical of linear regulators. No external components are required for operation. Available with standard screening or /ES screening.

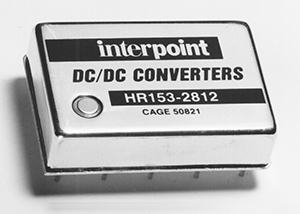

The HR150 Series DC/DC converters provide 20 watts of output power. They have been designed to give industrial applications the same high reliability, small size, and high performance that Interpoint has provided to military and aerospace programs since 1969.

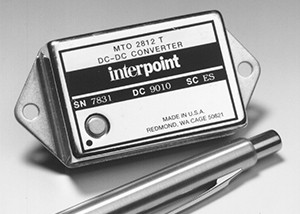

MTO Series DC/DC converters deliver 15 watts of output power with three output voltages. The MTO Series converters are packaged in hermetically sealed metal cases and operate at full load over a case temperature range of -55°C to +85°C (measured at the base plate of the converter).
The MHF Series DC/DC converters offer up to 12 watts of power from single or dual outputs in a single package over the full military temperature range. The converters are offered with standard screening or “ES” screening.
The HR120 Series DC/DC converters offer up to 12 watts of power from single or dual outputs in a single package over a –40°C to +85°C temperature range. Each unit is guaranteed to pass a hermeticity test with a maximum leak rate of 0.001 atm-cc/sec.
