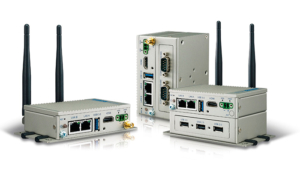

Advantech’s UNO-2271G is an energy-efficient platform for industrial automation. Due to the modular development principle UNO can be configured without excessive functionality, which saves the budget of the project. It also includes iDoor technology, which supports automation feature extensions such as industry fieldbus communication, Wi-Fi/3G, Digital I/O. The highly flexible customization and easy assembly provide integrated solutions to meet different needs.

The platform is built on the Intel Atom E3815 processor (can be changed to E3825), which means low power consumption and enough computing resources to allow solving industrial automation tasks and data processing. The computer comes with a sealed 4 GB RAM and also an eMMC 32 GB memory chip (optionally replaced with mSATA).

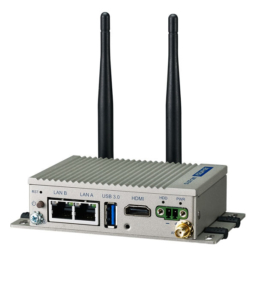

Features of the basic model UNO-2271G-E21AE:

  • Processor: Intel Atom E3815 1.46 GHz
  • BIOS: AMI EFI64
  • RAM (on board): 4 GB DDR3L 1066 MHz
  • Storage: eMMC 32 GB
  • Network: 2 x LAN port GbE
  • Expansion slots: 1 x full-size
  • 1 x USB 3.0
  • 1 x HDMI
  • Power supply: 10 ~ 36 VDC, average consumption 12 W (20 W at peak)
  • Operating temperature: 0 ~ 50 C

Additional features of the UNO-2271G-E22AE model (two-level)

  • 3 x USB 2.0 and 1 x USB 3.0

Additional features of the UNO-2271G-E23AE model (two-level)

  • 2 x COM ports RS 232/422/485
